Product Highlights

Stainless Steel Meter

Simple, maintenance-free, variable rate



Stainless Steel Tank

Non-corrosive, prevents fertilizer caking

Optional Steerable Axle

Passive or precision steering



Versatile

For chisel plows, planters or strip till applicators

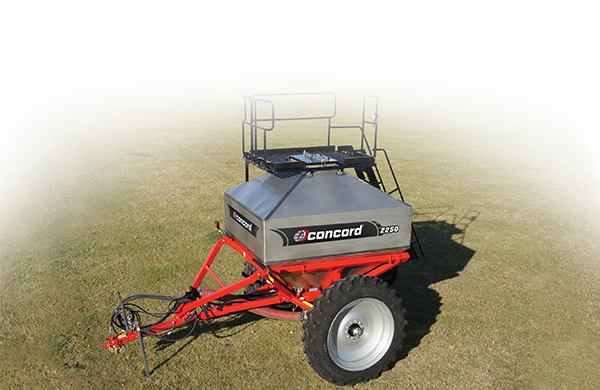

Not only is the Concord® 2250 air cart a great single-tank option for seeding, but it’s also an excellent cart for fertilizer application. The corrosion-resistant meters offer precise application, and the durable stainless steel tank doesn’t sweat, helping prevent fertilizer from caking.


Stainless Steel Meters

Featuring all stainless steel and non-corrodible components, Concord's stainless steel meters are virtually maintenance free and come standard on the 2250 air cart. Simple to use, the meters deliver seed and fertilizer precisely and gently to your air drill or any other seeding tool or fertilizer applicator on your farm.

  • ISO compliant variable rate or ground drive metering

  • Simple and precise calibration; easy access for setting

  • Shut-off slide isolates the meter from the tank

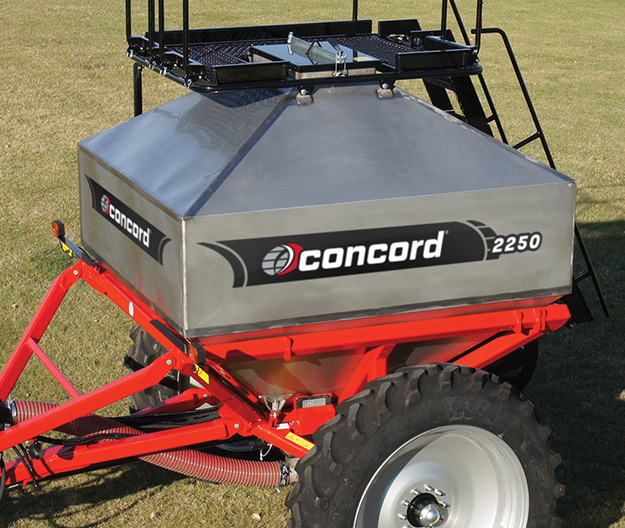

Stainless Steel Tank

Not only are Concord's stainless steel tanks durable and non-corrosive, but they also don't sweat, reducing the condensation that can cause seed and fertilizer to cake up in poly tanks. Additionally, there is no static electricity to impact product delivery.

  • Durable and non-corrosive

  • Doesn't sweat

  • No static electricity to impact product delivery

  • 225-bushel capacity

ISO Compliant
Electronic Controls

The user-friendly ISO compliant electronic control unit monitors a wide variety of important cart functions. Operators can control rates from the cab or load a map for variable rate seeding and fertilizing. The system is compatible with most in-cab ISO terminals, but is optimized for seamless use with the field-proven Raven® CR7™ and Viper® 4+ terminals. Hydraulic driven models are also provided with a remote calibration keypad as standard equipment, allowing operators to calibrate the machine without having to run back and forth between the tanks and tractor cab.

Monitor Functions

⟩ Fan Speed
⟩ Bin Levels
⟩ Meter Status
⟩ Blockage
⟩ Ground Speed
⟩ Section Switch Box
⟩ NH3 Application
⟩ Acres Seeded
⟩ Application Mass/Volume
⟩ Lifetime Totals

Viper 4+ Monitor

⟩ 12.1-inch capacitive touchscreen
⟩ Fast boot-up time
⟩ Built-in self-test capabilities
⟩ Wireless over-the air software updates
⟩ Optional four-camera system integration
⟩ Dust-proof

CR7 Monitor

⟩ Lightweight and cost-effective
⟩ 7-inch touchscreen
⟩ Simplified, customizable widget layout

Concord

Concord, Inc. was founded in 1977 by Howard and Brian Dahl, who led the introduction of air seeding equipment into the North American marketplace, as well as internationally. Today, Concord offers a full line of single- and double-disc drills, precision shank drills and air carts, which are manufactured in Wahpeton, North Dakota, alongside Wil-Rich and Wishek tillage tools.
