Product Highlights

Stainless Steel Meter

Simple, maintenance-free, variable rate



Stainless Steel Tank

Non-corrosive, prevents fertilizer caking



Section Control

4 sections, up to 3 dry products



Curve Compensation

consistent seeding/fertilizer rates around turns and curves

High Capacity

3 tank compartments and dual airstreams



Flexible Use

Tow-between or tow-behind capability



User-Friendly Monitor

Simple, reliable and iso compliant

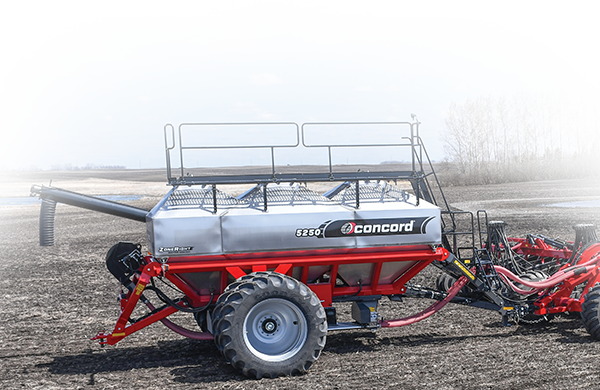

The Concord® 5250 and 3800 air carts offer a ton of capacity and flexibility. They have three tank compartments with single or dual airstream capabilities to deliver many different product combinations to the drill. Plus, they can be used as tow-behind or tow-between to accommodate your needs.

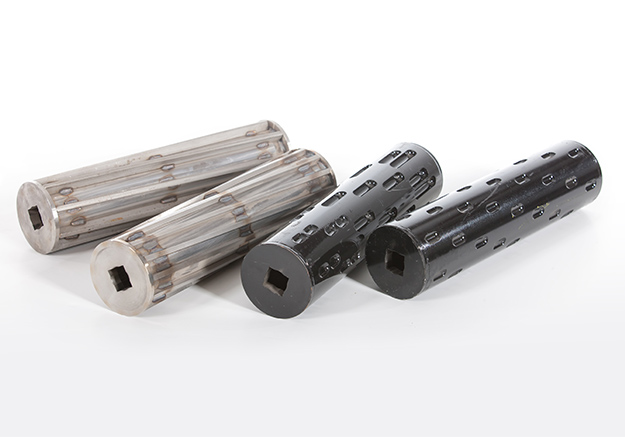

Stainless Steel Meters

Featuring all stainless steel and non-corrodible components, Concord's stainless steel meters are virtually maintenance free and come standard on the 3800 and 5250 air carts. Simple to use, the meters deliver seed and fertilizer precisely and gently to your air drill or any other seeding tool or fertilizer applicator on your farm.

  • ISO compliant variable rate or ground drive metering

  • Simple and precise calibration; easy access for setting

  • Shut-off slide isolates the meter from the tank

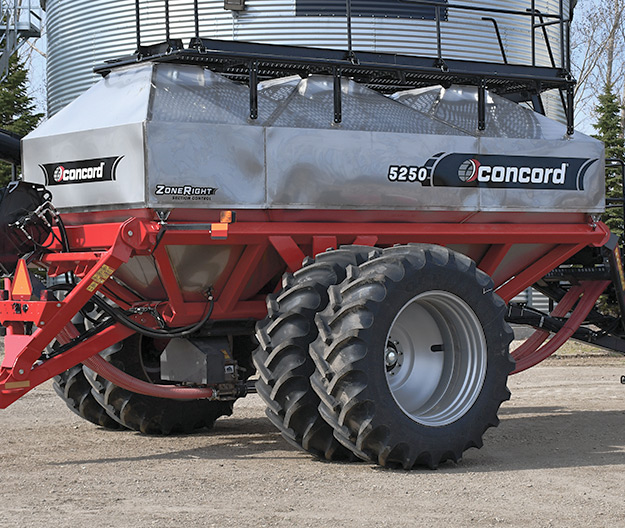

Stainless Steel Tanks

Not only are Concord's stainless steel tanks durable and non-corrosive, but they also don't sweat, reducing the condensation that can cause seed and fertilizer to cake up in poly tanks. Additionally, there is no static electricity to impact product delivery.

  • Durable and non-corrosive

  • Doesn't sweat

  • No static electricity to impact product delivery

  • 380-bushel (3800) and 525-bushel (5250) capacities

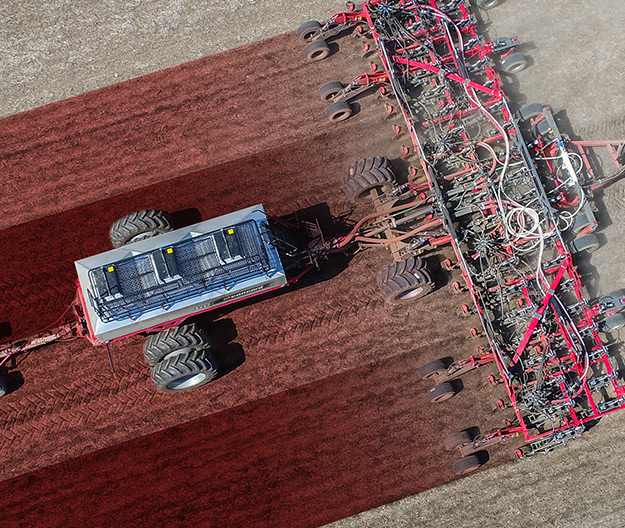

SECTION CONTROL

Section control is available on the 5250 and 3800 air carts. The new ZoneRight™ section control feature supports four sections of up to three dry products through single or double shoots. The sections automatically turn on and off to eliminate double seeding and fertilizing in areas that have already been seeded and/or fertilized along field edges, headlands and in irregular-shaped fields. Compared with competitive systems, Concord's four sections offer the ideal balance of seeding efficiency and machine return on investment.

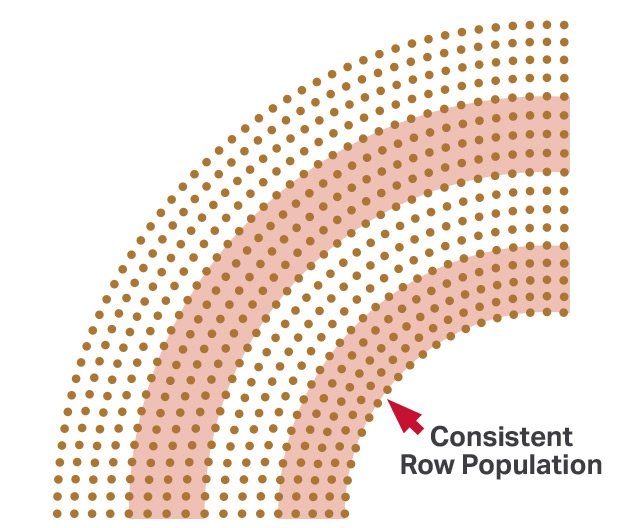

curve compensation

Curve compensation is provided with the ZoneRight section control system to automatically adjust the flow rate of each section around turns and curves. For example, as a machine seeds around a left-hand curve, the meters deliver seed and fertilizer at a reduced rate to the left-hand sections, while speeding up the rate to the right-hand sections. The result is a uniform seed and fertilizer rate across the width of the seeder and throughout the entire field.

ISO Compliant
Electronic Controls

The user-friendly ISO compliant electronic control unit monitors a wide variety of important cart functions. Operators can control rates from the cab or load a map for variable rate seeding and fertilizing. The system is compatible with most in-cab ISO terminals, but is optimized for seamless use with the field-proven Raven® CR7™ and Viper® 4+ terminals. Hydraulic driven models are also provided with a remote calibration keypad as standard equipment, allowing operators to calibrate the machine without having to run back and forth between the tanks and tractor cab.

Monitor Functions

⟩ Fan Speed
⟩ Bin Levels
⟩ Meter Status
⟩ Blockage
⟩ Ground Speed
⟩ Section Switch Box
⟩ NH3 Application
⟩ Acres Seeded
⟩ Application Mass/Volume
⟩ Lifetime Totals

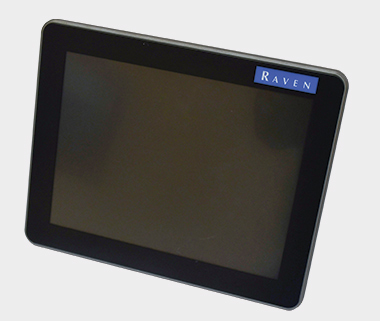

Viper 4+ Monitor

⟩ 12.1-inch capacitive touchscreen
⟩ Fast boot-up time
⟩ Built-in self-test capabilities
⟩ Wireless over-the air software updates
⟩ Optional four-camera system integration
⟩ Dust-proof

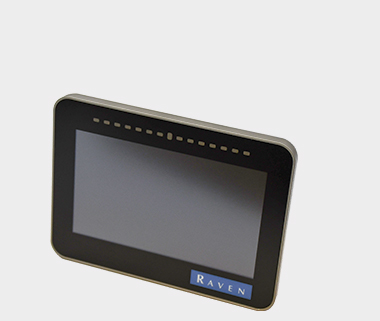

CR7 Monitor

⟩ Lightweight and cost-effective
⟩ 7-inch touchscreen
⟩ Simplified, customizable widget layout

Concord

Concord, Inc. was founded in 1977 by Howard and Brian Dahl, who led the introduction of air seeding equipment into the North American marketplace, as well as internationally. Today, Concord offers a full line of single- and double-disc drills, precision shank drills and air carts, which are manufactured in Wahpeton, North Dakota, alongside Wil-Rich and Wishek tillage tools.
