Product Highlights
Large Hopper
Industry-leading 175 bushel capacity
Dual Hopper
Carry single or dual product on board
Streamlined Design
Easy Access for simplified calibration and clean-out
Narrow Transport
Folds to just 11.5 feet wide
Section Control
Improve efficiency in the field
Curve Compensation
consistent seeding/fertilizer rates around turns and curves

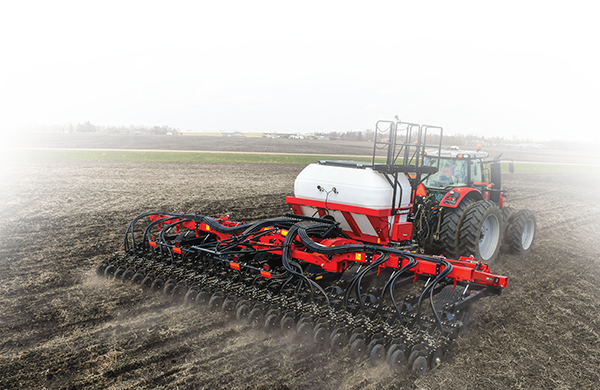

It's far superior to a box drill. And it's way better than any other air drill with an integral tank. The Concord® NT30 Disc Drill offers a large central-fill tank capacity with maximum air flow, simplified calibration and clean-out...all with a narrow transport width. The NT30 is also offered with your choice of two openers, which excel in no-till as well as other types of tillage systems. Whether you need the superior ground-following performance of our HD model or fertilizer banding capabilities of the SD model, Concord has you covered.
Looking for a Concord Demo Near You?
Sign up to be notified!

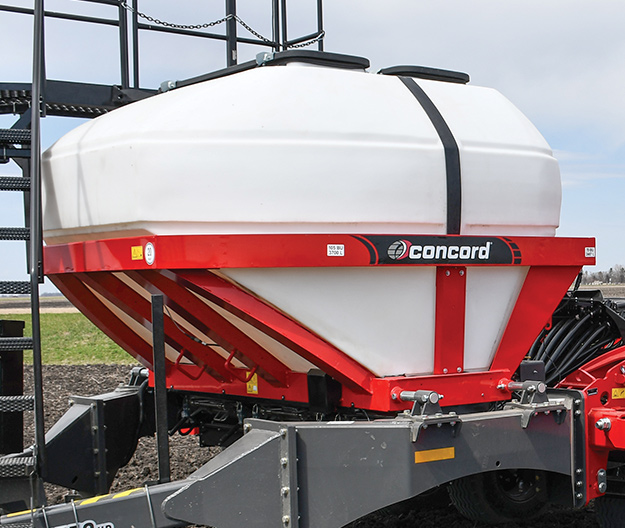

Large dual Hopper
The integrated hopper offers an industry-best capacity of 175 bushels (105 bushels front tank, 70 bushels rear tank), increasing the time needed between fills. The second hopper can be used for starter fertilizer to be placed with the seed or a second seed variety for changes on the go.
-
Product Level Sensor
Product level sensor indicates when it’s time to fill.
-
Fill Safety
Wide ladder and railed platform make filling safe and easy.
-
Hopper Design
Steep slopes for effective material movement and easy clean-out.

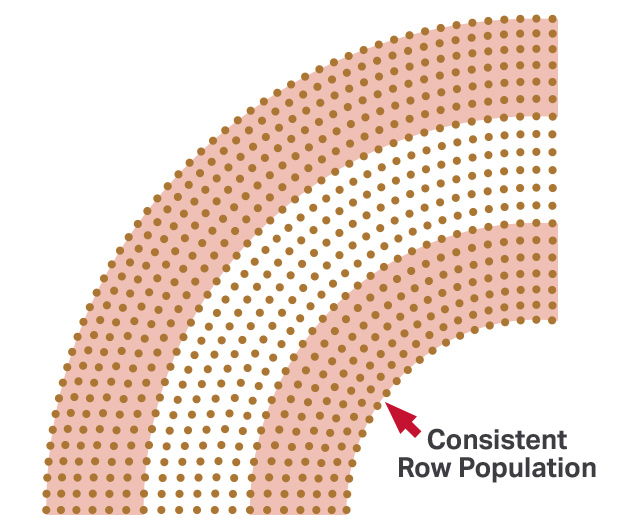

section control with curve compensation
Section control on the drill minimizes double seeding and fertilizing, saving valuable input costs. The NT30 Disc Drill features three 10-foot sections that turn on and off independently by sensing whether the drill has already seeded the area. It can also utilize high-resolution prescription maps and meter product by section based on location in the field. Additionally, during turns and curves, the flow rate of each section is automatically adjusted so that a uniform seed and fertilizer rate is achieved across the width of the machine.

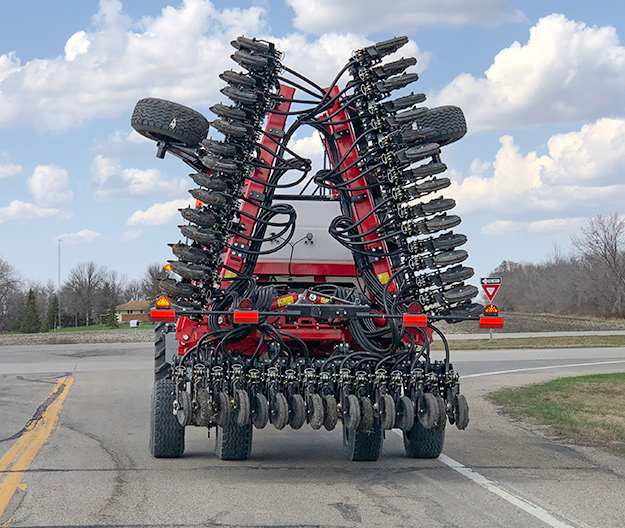

Narrow Transport
The NT30 has a working width of 30 feet, but can be folded to compact width of just 11.5 feet (3.5 m) wide by 12.8 feet (3.9 m) tall for safer travel in areas with narrower roadways.
