Product Highlights

Residue Clearance

No bunching or residue piles



Fast and Productive

Run at 8 mph or more



Smooth Field Finish

Wide packer tire properly closes the furrow



Precise Down Pressure

Monitor and control on-the-go



Seedbed Utilization

Up to 47% depending on opener and input



Fertilizer Efficiency

Full control of all application factors

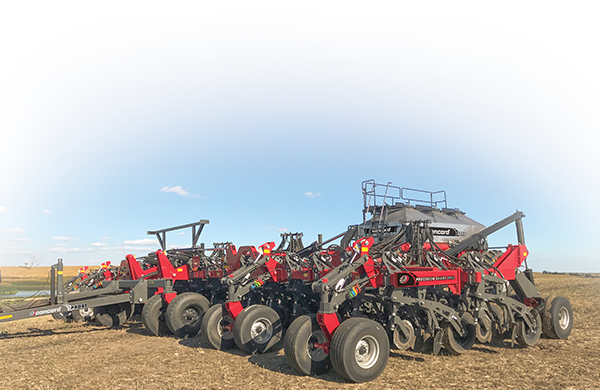

The Concord® Precision Shank Drill isn’t your typical hoe drill. That’s because its award-winning design can operate at speeds of 8 miles per hour (12.9 kph) or more without bunching up residue or throwing soil on top of neighboring rows. Add in a low maintenance design and working widths up to 61.5 feet (18.7 m), and that equals more acres per day than any competitive unit.

The highest seedbed utilization

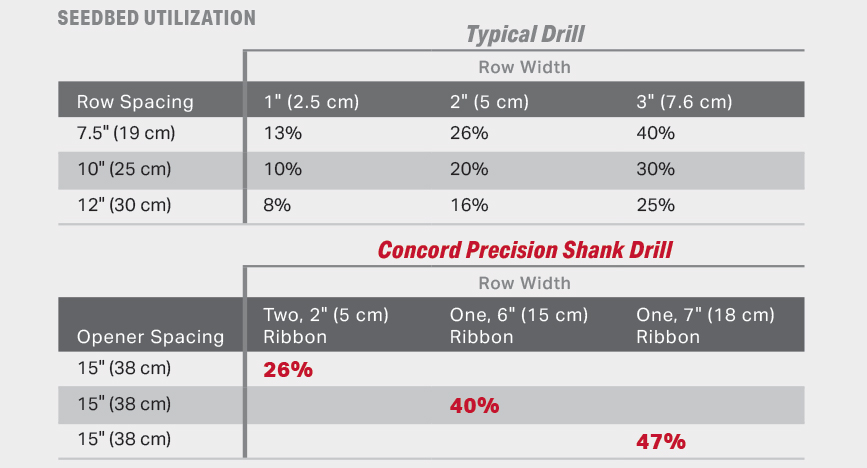

Each opener is spaced 15" apart, allowing maximum flexibility in seedbed utilization. Choose the popular dual-placement opener to create 6.5"/8.5" paired rows, resulting in an average row spacing of 7.5" across the unit, with each row 2" wide for improved plant spacing. An optional ribbon seeding opener puts down a 5- to 7-inch-wide (13 to 18 cm) ribbon of seed and fertilizer for up to 47-percent seedbed utilization — much higher than typical drills.

MAXIMUM FERTILIZER EFFICIENCY

Gain maximum fertilizer efficiency by putting the right fertilizer source at the right rate, time and place.

  • Right Source: Apply NH3, liquid or dry fertilizer.

  • Right Rate: Dual placement openers can apply the desired fertilizer amount at seeding time.

  • Right Time: Place as much fertilizer as needed while planting. You can also pre-apply fertilizer in the fall.

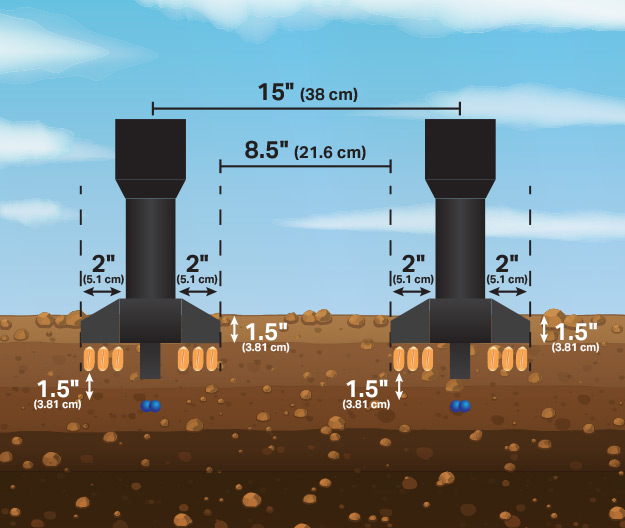

  • Right Place: Use dual placement openers to place fertilizer between adjacent rows and 1.5 inches deeper than the seed — right where the roots need it during the critical plant growth stages. Optional ribbon seeding also allows higher rates of fertilizer without damaging the seed.

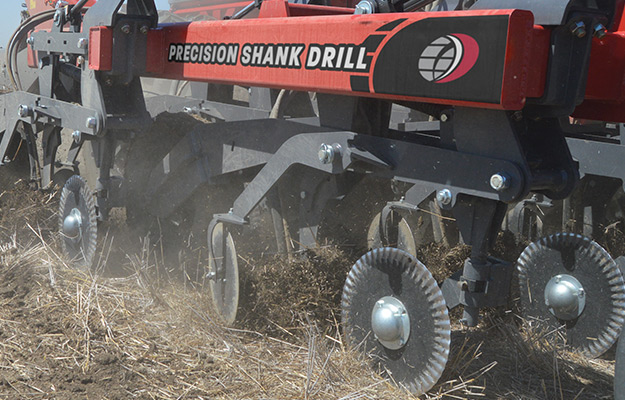

High Speed Operation

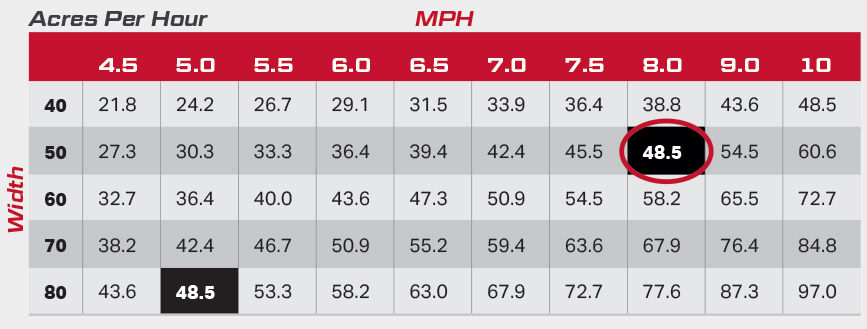

The Precision Shank Drill is able to operate at high speeds, thanks to the unique design of the closing discs. They capture all of the soil that is displaced by the seed opener, preventing soil from being thrown over neighboring rows and ensuring uniform seed covering from row to row at any speed. By running at 8 miles per hour or more, the Precision Shank Drill is capable of covering more acres per day than wider hoe drills that are limited to 5 miles per hour or less.
